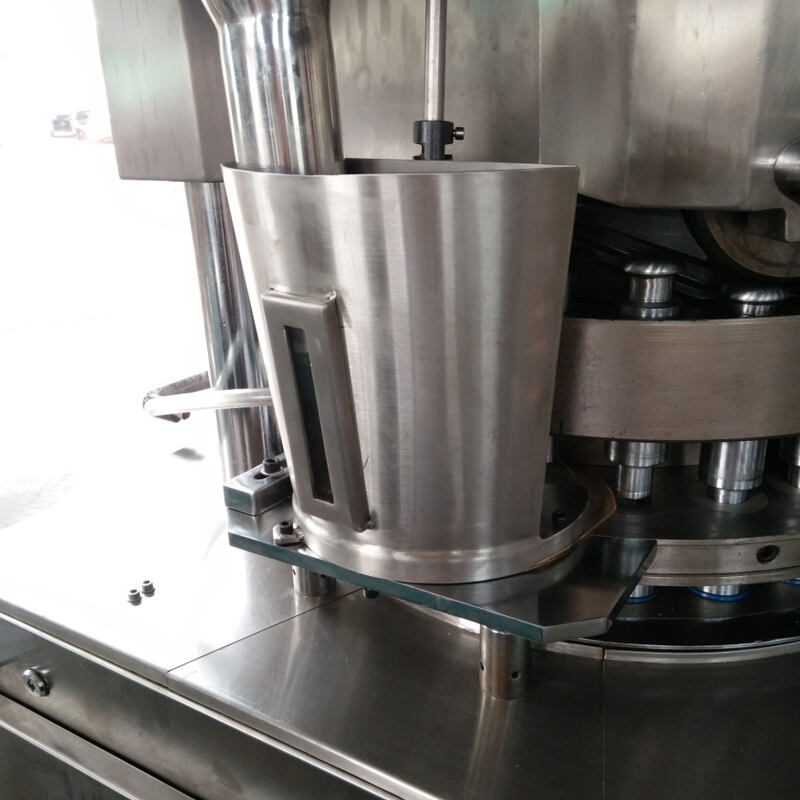

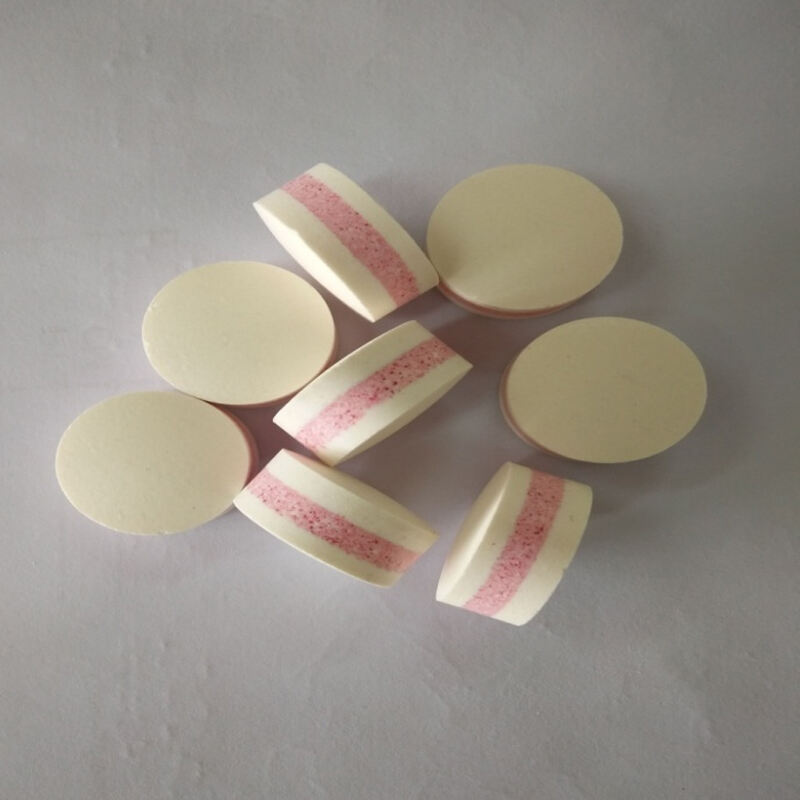

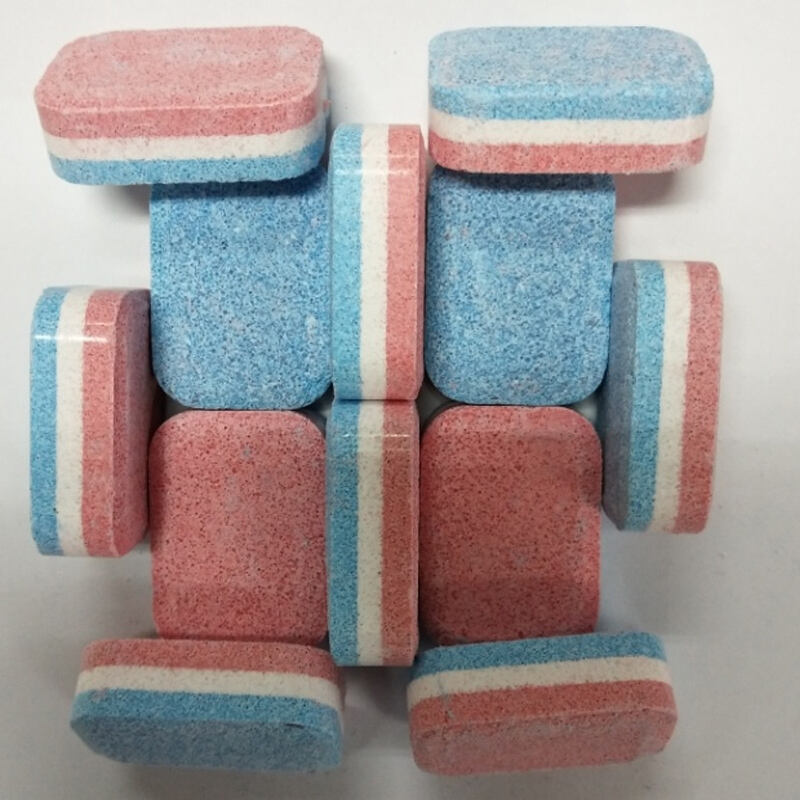

Based on Rotary tablet press machine, our factory improved it. This machine is mainly for pressing the tablet of double layers or three layers. It mainly used in pharmaceutical industry, chemical industry, electronic products and food.
| Dies (sets) | 23 |
| Max. Pressure (KN) | 100 |
| Max. dia. of tablet (mm) | 40 |
| Max. Thickness of largest tablet (mm) | 14 |
| Max. Depth of fill (mm) | 25 |
| Max. production capacity(pcs/h) | 18000 |
| Rotational diameter(mm) | 445 |
| Rotational speed of revolving table(r/min) | 10-25 |
| Diameter of middle mould (mm) | 52 |
| Highness of middle mould(mm) | 34+4 |
| Diameter of up and low punch pole (mm) | 42 |
| Length of the upper punch pole (mm) | 180 |
| Length of the lower punch pole(mm) | 180 |
| Overall dimensions(mm) | 1000*1250*1900 |
| Net Weight (kg) | 3200 |
| Motor model | YU132M4A |
| Motor(KW) | 7.5 |
| Voltage(V) | 380 |
A. Machine meets GMP and made in stainless steel. The inner tablet press surface has been special treated, which could keep surface luster and avoid cross contamination.
B. Equipped with transparent window which could help to observe the status of pressing tablets. Transparent window could be fully opened, easy to clean and maintain.
C. Machine speed could be adjusted.
D. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
E. Transmitting system is sealed in the oil box under the main machine, which works separately. No pollution and easy to send out heat and resist grinding.
F. Machine equipped with suction machine which could absorb the powder of working area.
